Three-phase installations distribute electrical power across three alternating-current conductors, supporting higher-demand domestic and commercial equipment. RJW Electrical designs, installs and tests three-phase supplies, three-phase meter installations and control panel wiring to provide compliant systems suited to the building’s load.
What a Three-Phase Installation Includes
A specification considers incoming supply, demand and distribution. It identifies metering, switchgear, protective devices, boards, cable sizes and containment, matched to the building’s conditions and intended load.
Installation scope may include phase balancing, segregation, earthing and bonding, labelling, and verification testing. Existing equipment, access constraints and future capacity are assessed, with test results and certification recorded for the completed work.
Load Assessment
The design assesses the building’s connected load, maximum demand, equipment ratings and anticipated expansion before selecting the three-phase arrangement.
Supply and Metering
Incoming supply requirements, three-phase meter configuration and service capacity are coordinated with the proposed installation and the distributor’s requirements.
Switchgear and Distribution
Switchgear, distribution boards, isolators and control panels are specified to suit the system architecture, fault levels and operational requirements.
Phase Balancing
Single-phase circuits are allocated across the three phases to manage demand distribution and reduce avoidable imbalance within the installation.
Cables and Containment
Cable sizes, voltage drop, thermal conditions, routes and containment are selected according to the load, installation method and site environment.
Protection and Earthing
Protective devices, fault protection, discrimination, earthing and bonding are considered as part of a coordinated design under the current 18th edition wiring regulations.
Testing and Certification
Completed work is inspected and tested, with results recorded alongside the relevant certification and circuit identification for future maintenance.
Three-Phase Installation Questions Answered
When is a three-phase electrical installation required?
Compliance requires design and verification against BS 7671, correct protective-device discrimination, suitable fault-current ratings, and documented inspection results. Reassessment is necessary when equipment, demand, or operating conditions change over time.

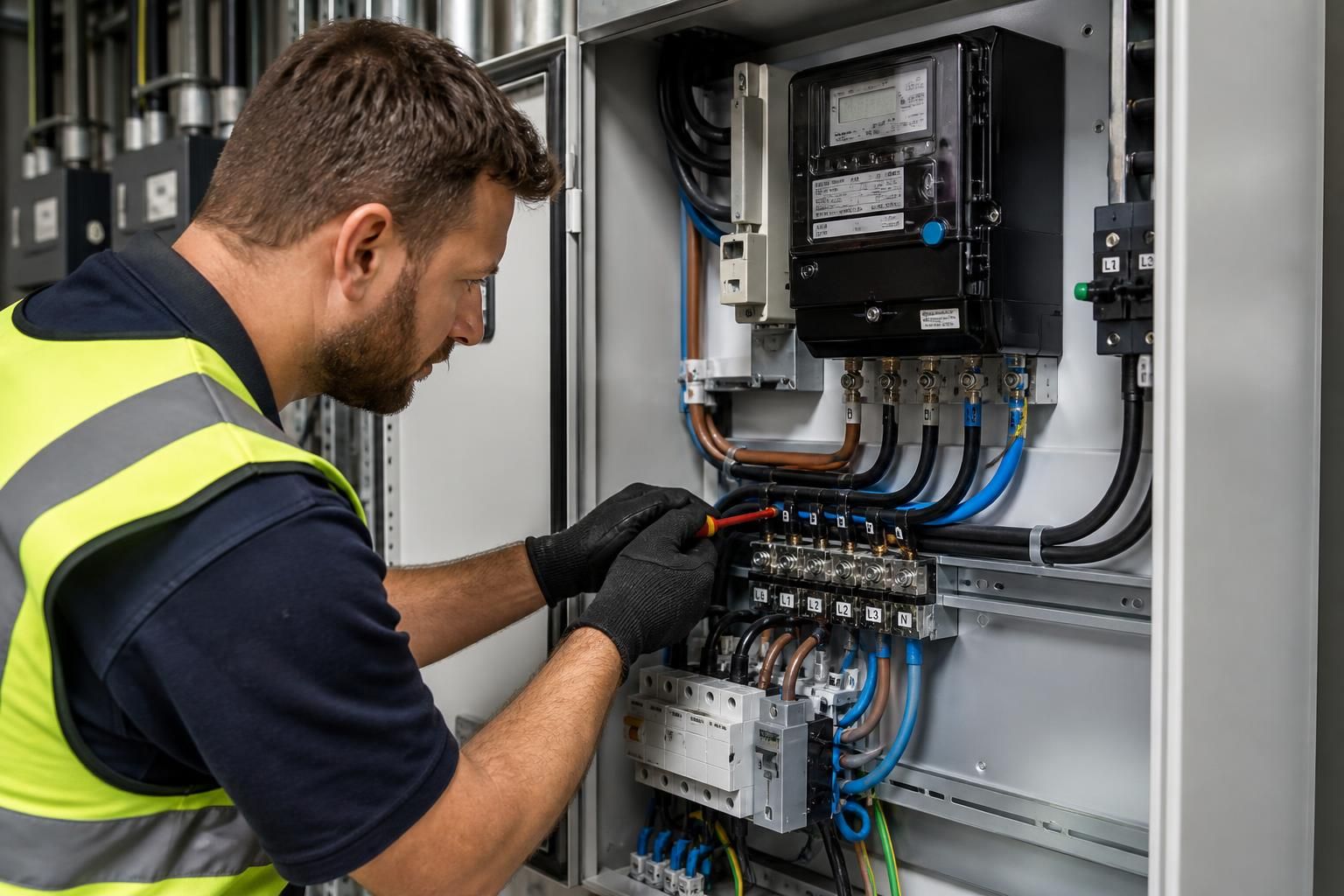

What is involved in a three-phase meter installation?
Work includes confirming the network connection, meter type, isolation arrangements and meter position; installing correctly sized conductors, identifying phases, maintaining seals, completing functional checks before energisation and issuing installation documentation.
What does control panel wiring involve in a three-phase installation?
Control panel wiring connects three-phase incoming supply to contactors, relays, protection and control devices. Conductors are identified, terminated and segregated appropriately, with circuit labelling and functional testing confirming predictable operation.
How is phase balancing managed in a three-phase installation?
Phase balancing allocates single-phase loads across the three phases to limit neutral current, reduce voltage imbalance and use available capacity effectively. Measurements under operating conditions confirm whether redistribution is required.
Can a three-phase installation be added to an existing electrical system?
Yes, subject to a survey confirming incoming capacity, service head, existing switchgear, earthing, cable routes and space. An upgrade may require network operator approval, revised protection and coordinated commissioning documentation.
Three-Phase Installations for Different Property Requirements
Three-phase installations can be configured for varied electrical demands, from workshops and commercial units to larger premises with machinery or advanced heating systems. The design should reflect operating conditions, expansion plans, and the consequences of interruption.
Machinery-led premises
Workshops, fabrication units and industrial spaces may require three-phase power for motors, compressors, welders and other high-demand equipment. The installation should account for starting currents, cable sizing, protective devices and the effect of motor loads on the wider system.
Commercial buildings
Offices, retail premises and larger commercial units can use three-phase distribution to serve separate areas, plant rooms and specialist equipment. A structured distribution arrangement helps coordinate sub-boards, isolation points and maintenance requirements.
Heating and mechanical systems
Three-phase supplies can support commercial heating, ventilation, pumps and other mechanical services where a single-phase connection would not suit the load. Design considerations include equipment ratings, control interfaces, isolation and safe access for inspection.
Capacity for future changes
Where a premises may add machinery, charging equipment or additional plant, the design can be assessed against anticipated demand rather than only the present installation. Allowing for suitable distribution capacity and accessible control equipment can reduce the need for disruptive alterations later.
Measured compliance and safety
The completed installation requires appropriate inspection and testing to verify protective measures, conductor arrangements, polarity, continuity and insulation performance. RJW Electrical works to the latest 18th edition wiring regulations, with NAPIT and Trustmark scheme membership supporting its professional credentials.
Projects across the Midlands
RJW Electrical undertakes three-phase installation work for domestic and commercial clients across the Midlands, primarily in Sutton Coldfield, Streetly, Walmley, Erdington, Lichfield, Aldridge, Walsall and Shenstone.

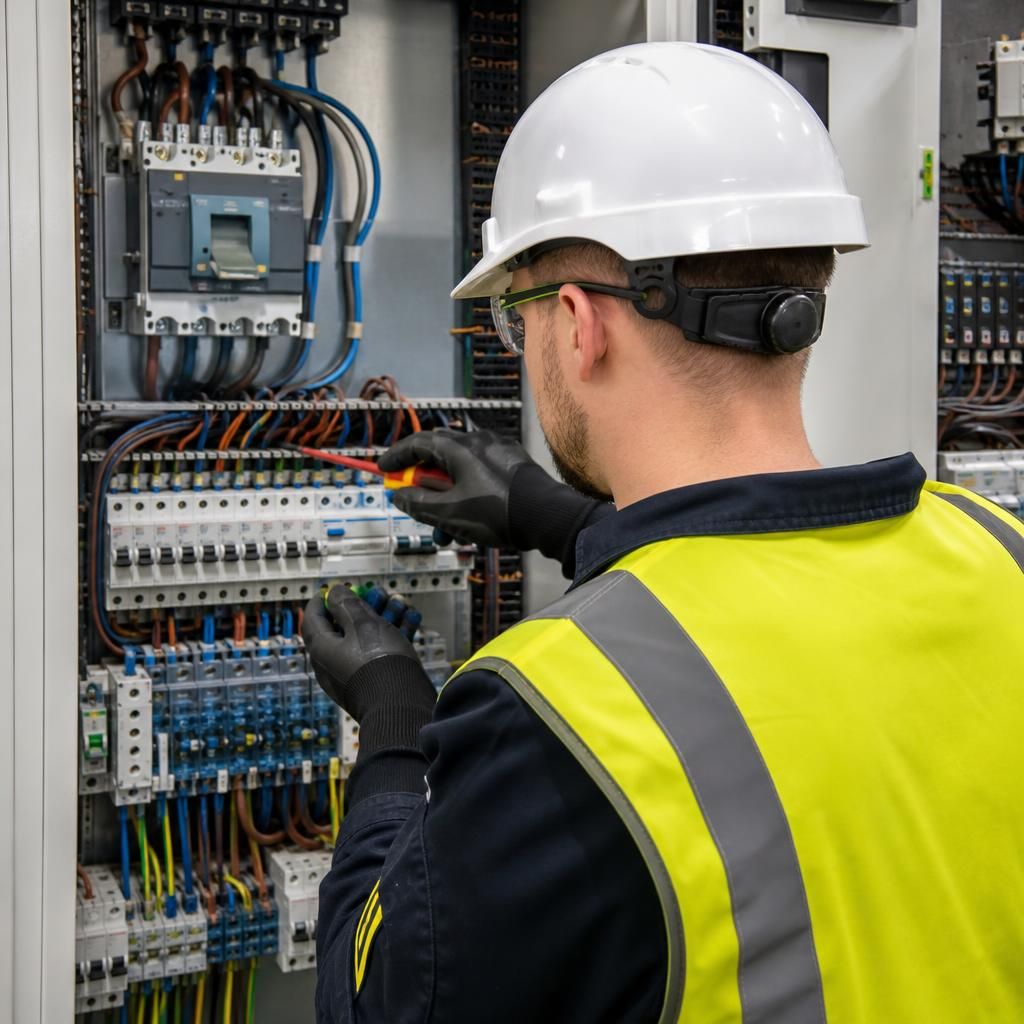

Qualified Delivery for Compliant Three-Phase Systems
For a three-phase installation, competent delivery means more than connecting equipment: the supply, protective devices and control-panel wiring must be selected, installed and verified against the design and applicable requirements. RJW Electrical uses fully qualified engineers to carry out this work.
Engineers are insured and DBS-checked, with installations completed in accordance with the current 18th edition wiring regulations. This provides a clear basis for safe workmanship, inspection and certification, whether the system supports commercial equipment or a higher-demand domestic installation.
RJW Electrical is a NAPIT member, part of the TrustMark scheme and registered with the Electrical Safety Register. Two decades of regional electrical experience support consistent project documentation and practical coordination with other trades. A no-call-out-fee quotation helps customers assess the proposed scope before work begins.
Questions to Ask Before Appointing a Three-Phase Installation Contractor
A three-phase installation should be assessed against the building’s existing supply, intended equipment and anticipated changes in demand. Before appointing a contractor, ask how the initial survey will identify capacity, routing, isolation points, earthing arrangements, plant connections and any limitations affecting the proposed design.
Clarify which equipment and protective devices are included, which standards will be applied, how access and coordination with other trades will be managed, and what inspection, testing and handover records you will receive. The quotation should also explain maintenance recommendations, defects or exclusions, and who is responsible for future alterations, faults and certification.
Has the site been surveyed properly?
A suitable survey should consider the incoming supply, distribution equipment, earthing and bonding arrangements, cable routes, isolation points, plant locations and the characteristics of connected loads. It should also record access restrictions, asbestos or other site risks where relevant, and any coordination required with the distribution network operator or other contractors. Request a written summary of assumptions, limitations and recommended remedial work.
Which equipment and protection are included?
Ask for the ratings and intended functions of switchgear, distribution boards, circuit-breakers, residual current protection, surge protection, isolators, control equipment and cabling. Confirm whether motor starting currents, harmonic loads, phase balance, discrimination and future capacity have been considered. The scope should state which items are supplied and installed, which are client-provided, and where interfaces with machinery or building systems begin and end.
Which standards will govern the work?
Ask which edition of the wiring regulations and other applicable requirements will be used, and whether the design includes suitable fault-current ratings, cable protection, voltage-drop assessment, isolation and emergency disconnection. Establish who is responsible for design calculations, equipment compatibility and resolving conflicts between the electrical installation and connected machinery. Any departures, exclusions or assumptions should be identified before approval.
How will access and site coordination be managed?
Ask what access, working space, lifting arrangements and temporary facilities are needed, and whether the proposed routes allow safe installation and later inspection. Confirm how shutdowns will be authorised, how circuits will be identified, and how electrical work will be coordinated with builders, mechanical contractors, machinery installers and the building operator. The agreed scope should also address making good, fire stopping and removal of redundant materials where these responsibilities apply.
What testing and handover records will be provided?
The handover should identify the installation tested, record relevant test results and include the appropriate electrical certificates and schedules. Ask whether testing will cover continuity, insulation resistance, polarity, earth fault loop impedance, prospective fault current, residual current protection and functional operation where applicable. The final documents should correspond with circuit references, distribution-board labels, drawings or schematics, and any control-panel settings needed for safe operation.
What happens after completion?
Ask for recommendations covering visual checks, periodic inspection, cleaning, torque checks, thermal assessment, protective-device testing and review of control equipment, with the frequency determined by the installation and its operating conditions. Confirm how defects will be reported, who may alter circuits or settings, and whether future extensions require a design review and updated certification. Keep the as-installed drawings, schedules, test results and operating information accessible so later work can be assessed against the original system.
Use the answers to compare contractors on the completeness of their proposed solution, not solely on the installation price. A suitable quotation should turn the survey findings into a defined scope, with responsibilities, assumptions and handover requirements clear before any work is authorised.
The next step is to arrange a site assessment based on the equipment and capacity requirements already identified. Ask the contractor to confirm any information they need from the property owner, distribution network operator or equipment supplier so that design decisions can be resolved before installation begins.
Discuss Your Three-Phase Installation Requirements
Discuss your three-phase installation requirements with RJW Electrical and request a properly specified quotation. Provide details of the equipment, proposed capacity and site constraints so the scope, control panel wiring, testing and handover requirements can be assessed clearly.
