Extractor Fan Wiring
Bathroom extractor fan wiring connects the fan safely to the electrical supply and controls. RJW Electrical provides compliant installation and testing by qualified engineers across the Midlands. Contact us to discuss your bathroom fan wiring requirements and request a quote.
Our Approach
Expect careful workmanship, clear communication, regulation-compliant testing, suitable fan selection, and a straightforward route from initial assessment to safe completion.
Extractor Fan Solutions for Your Property
Extractor fan wiring is the electrical connection between a bathroom fan, its controls and the property’s supply. The arrangement may include a switched live, permanent live or humidity control, depending on the fan and how it should operate.
RJW Electrical assesses the existing circuit, fan position, cable routes and control requirements before recommending a suitable configuration. This helps address ventilation needs while keeping the installation practical for the room and straightforward for the customer.
Wiring Suited to the Property
The wiring approach is shaped around the bathroom layout, existing electrical installation and access available for the work.
New and Replacement Fans

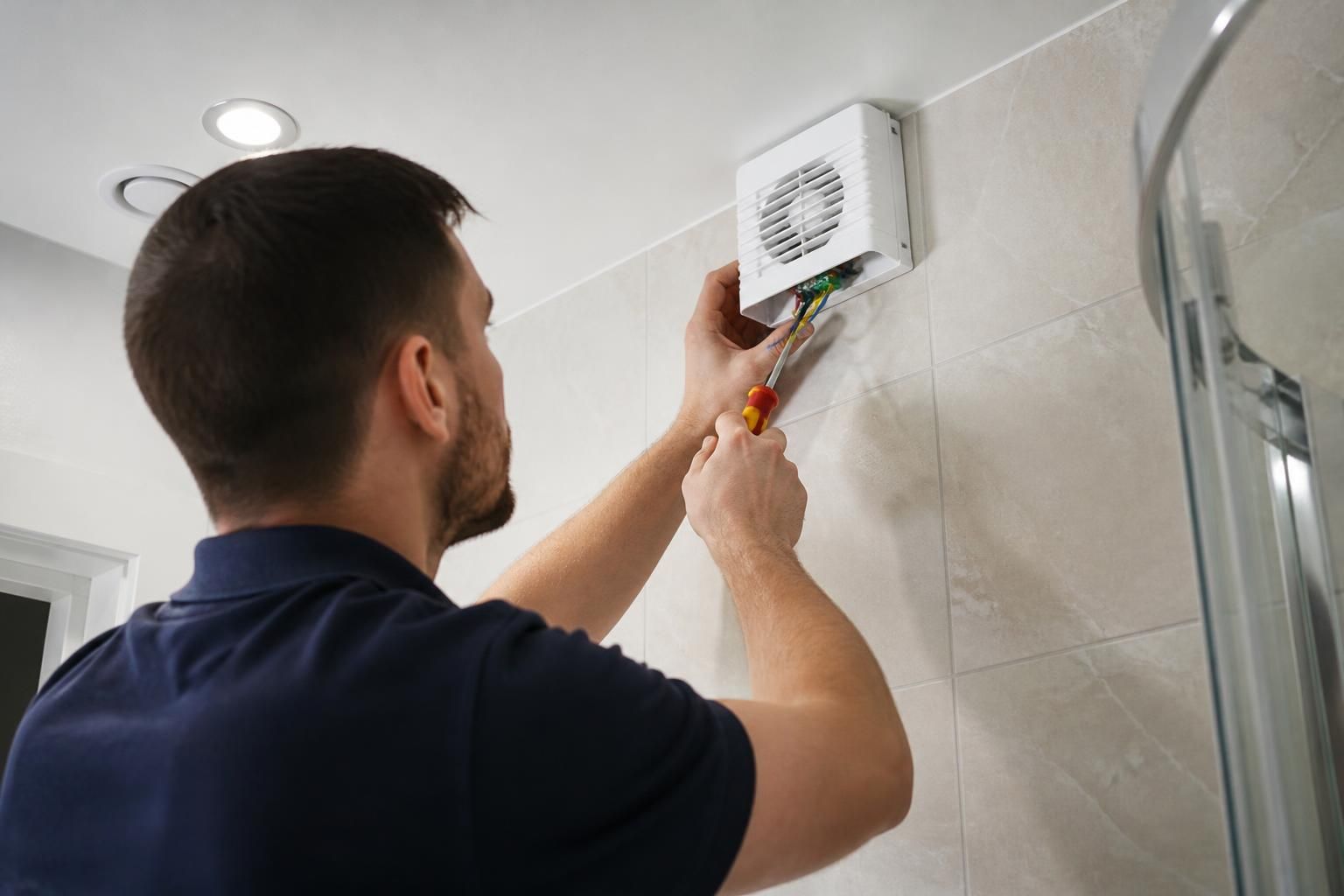

RJW Electrical can wire an extractor fan as part of a new installation or replace the connection for an existing bathroom fan.
Controls Matched to Use
The connection can be planned around the way the fan needs to operate, including manual switching or automatic control where supported by the chosen fan.
Electrical Safety Considered
The installation takes account of the bathroom environment and the protective requirements that apply to electrical equipment in areas affected by moisture.
Qualified Installation Team
Work is carried out by fully qualified, insured and DBS-checked engineers working to the latest 18th edition wiring regulations.
Clear Scope and Quotation
The proposed work is explained before installation, with a no call out fee quote to help customers understand what the extractor fan wiring involves.
Qualified Installation and Testing Standards
Effective extractor fan wiring depends on more than connecting cables. RJW Electrical’s approach combines qualified engineers, current 18th edition knowledge, appropriate inspection and testing, and professional procedures suited to both domestic bathrooms and commercial premises.
Fan and Control Compatibility
Extractor fan wiring is planned around the fan’s electrical requirements and control method, whether operated by a standard switch, timer or humidity control. This helps ensure the wiring arrangement matches the equipment being installed.
Safe Isolation and Connections
The installation includes suitable isolation, secure cable connections and attention to the existing circuit. These details help make future maintenance safer and reduce the risk of poorly terminated wiring.
Considered Cable Routing
Cable routes are assessed in relation to the fan position, switches and the existing electrical installation. RJW Electrical aims for orderly routing and appropriately protected wiring within the relevant installation requirements.
Inspection and Testing
Extractor fan wiring is checked and tested as part of the completed electrical work. Findings can be explained clearly so the property owner or responsible person understands the condition of the installation.
Recognised Professional Standards
RJW Electrical is a NAPIT member, participates in the TrustMark scheme and is listed on the Electrical Safety Register. Its engineers are qualified, insured and DBS-checked, supporting a professional approach to extractor fan wiring.
Questions About Extractor Fan Wiring
Does an extractor fan need its own electrical circuit?
An assessment should confirm the fan’s location, switching arrangement, isolation requirements, cable route, and existing circuit suitability. These details determine the appropriate wiring method and testing needed before installation begins.
Does bathroom extractor fan wiring require a local isolator?
A local isolator allows the fan supply to be disconnected safely for cleaning, maintenance, or testing. Its position and switching method should suit installation, wiring arrangement, and applicable safety requirements.
Can an extractor fan be wired to the bathroom light?
Yes, where the circuit and switching arrangement are suitable. Timed fans usually need permanent live, switched live and neutral, so existing light wiring may require modification and appropriate electrical testing.
What type of cable is used for bathroom extractor fan wiring?
Bathroom fan wiring commonly uses appropriately rated PVC-insulated cable, selected according to the installation method, circuit characteristics, and bathroom location. Cable sizing and protection require assessment by a qualified electrician.
What are the bathroom zones for extractor fan installation?
Bathroom zones define areas around baths and showers with differing electrical protection requirements. An extractor fan’s position, IP rating, and installation method must suit the relevant zone and applicable regulations.
Safety, Standards and Workmanship
For a bathroom fan installation, the wiring arrangement should match the fan’s control method, the room’s electrical conditions and the available cable routes. The assessment can identify whether the installation involves a new supply, a replacement connection or alterations to existing controls, while also considering access, ventilation requirements and the position of the isolator.
Before work begins, RJW Electrical can explain the proposed arrangement, required access and any relevant limitations in clear terms. Work is carried out by insured, DBS-checked personnel, with the completed installation inspected and tested so the customer has a clear record of what has been undertaken.
Assessment of the existing wiring
The engineer can review the existing circuit, switching arrangement, isolator position, cable routes and available access. This helps establish whether the work is a replacement, a new connection or an alteration to existing wiring, and allows any limitations to be explained before work starts.
Qualified and accredited workmanship
The installation is approached in line with the latest 18th edition wiring requirements and relevant safety considerations for electrical work in bathrooms. The engineer can explain the proposed method, identify any necessary protective measures and keep the work focused on a safe, compliant extractor fan connection.
Inspection and testing
After installation or alteration, the relevant parts of the circuit can be inspected and tested, including the fan connection and associated controls. The findings can then be recorded clearly so the customer understands what has been checked and which parts of the electrical installation were included.
Clear scope and quotation
The quotation discussion can cover the fan wiring arrangement, control method, isolator requirements, cable access and any work needed to alter existing connections. RJW Electrical can also provide a No Call Out Fee Quote, giving the customer a defined basis for considering the work without unclear assumptions about the electrical scope.
Once the requirements and proposed wiring arrangement are understood, you can decide whether to proceed with the work based on a clear scope and quotation. Any necessary changes to the existing installation can be identified before approval, rather than being assumed.
For advice on wiring an extractor fan, provide details of the bathroom, existing controls and whether the fan is a new installation or replacement. RJW Electrical can then explain the relevant considerations and outline the next step without a call-out fee for the quotation.
Discuss Your Extractor Fan Wiring Requirements
If you are planning extractor fan wiring, share the property type, bathroom location, existing fan or controls, and any access considerations. RJW Electrical can discuss the requirements, clarify the proposed scope and arrange the next practical step.
